Flexible coupling type 6, 20 mm pilot bored
Köp nu och få det mellan 08.12.25 och 10.12.25
Leveransdatumsintervallet ger dig en indikation på hur lång tid det tar att få varan. Det är baserat på orderhanteringstid, leveranssätt och produkttillgänglighet.

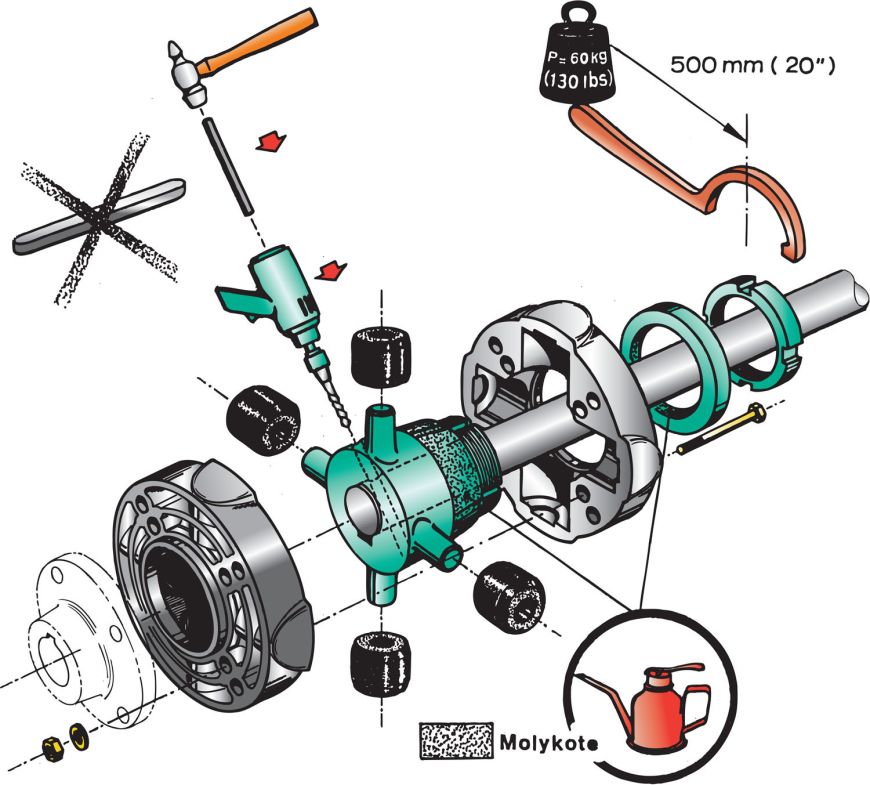

The KO54 flexible coupling has a special conical clamping hub, which guarantees a 100% concentric fit. This saves installation time. Suitable for V-drives.
| Tillverkare | Vetus |
|---|---|
| L (inches) | 3 5/16 |
| Type | 6 |
| Shaft diameter d (mm) | 20 |
| L (mm) | 84 |
| D (mm) | 137 |
| Shaft diameter d (inches) | 13/16 |
| D (inches) | 5 3/8 |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 3,3 (4,5) |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 3,9 (5,3) |
| Weight (kg) | 2,7 |
| Max. admissible power at 1500 RPM | 58,5 (79,5) |
